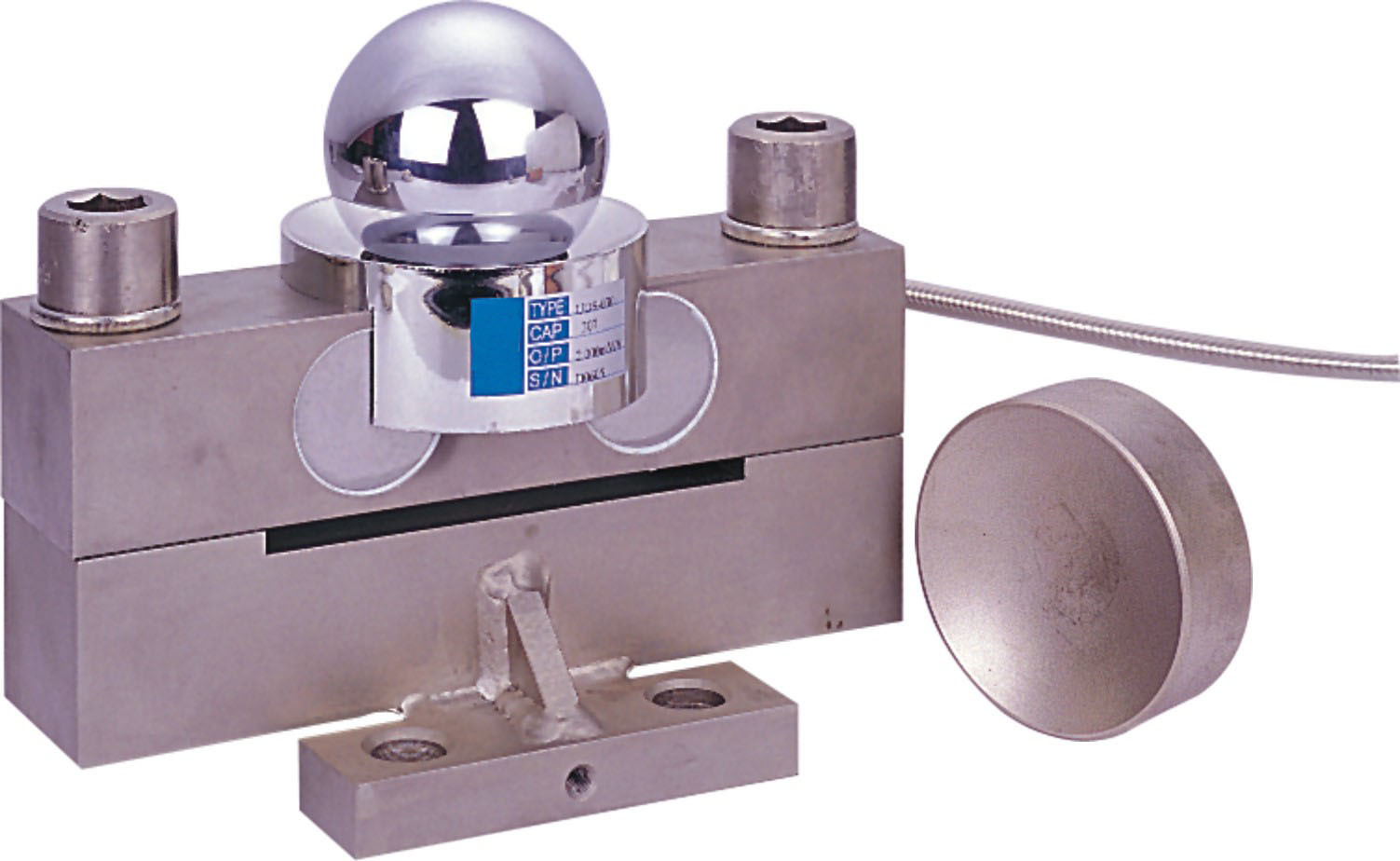

Small Precision Load Cell 20t 25t 30t Integral Overload Protection 15V

Basic Information
Place of Origin: China, xiamen
Brand Name: NOVO
Certification: CE
Model Number: NC2
Minimum Order Quantity: 12 sets
Price: USD1.00-USD58 / set
Packaging Details: Packaging Details:4 sets per carton
Delivery Time: 15 days after receive the confirm of the order
Payment Terms: T/T, Western Union, L/C, MoneyGram, D/P
Supply Ability: 1000 sets per month
Detail Information
Product Ma,e: Precision Load Cell Capacities: 20t, 25t, 30t
Feature: High Accuracy Material: Aluminum
Recommended Excitation: 10V Maximum Excitation: 15V
Rated Output: 3 ± 0.0025 Sealing: Complete Hermetic Sealing
High Light:

waterproof load cells


parallel beam load cell

Product Description

Small Load Cell Measuring Range 20t 25t 30t Alloy Aluminum Material


FEATURES: NC2 (Load cell)

  • Capacities: 20t, 25t, 30t
  • High accuracy
  • Total alloy steel construction.
  • Integral overload protection up to a nominal load of 2000Kg.
  • Factory mutual approved
Maximum Capacity T 20 / 25 / 30
Material   Alloy steel
Recommended Excitation V 10
Maximum Excitation V 15
Rated Output(=RO) mV/V 2 ± 0.04
Zero Balance %RO ± 1
Creep error (20 minutes) %RO ± 0.03
Reapeatablity %RO ± 0.02
Input Resistance Ω 700 ± 7
Output Resistance Ω 700 ± 7
Compensated temperature range -10~40
Operating temperature range -20~60
Safe load limit %of rat cap. 120
Ultimate load %of rat cap. 150
Protection class   IP65


Application areas:

  • Vehicle scales
  • Rail scales
