| Ultimate Overload: | 300(%FS) | Temperature Range: | -35~+65 (°C) |
|---|---|---|---|

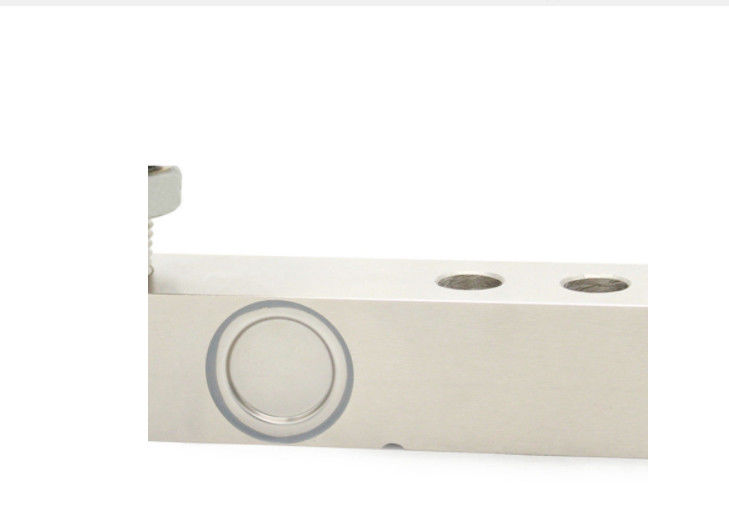

| Product Name: | Digital Weighing Load Cell | Safe Overload: | 150 (%FS) |
| Maximum Excitation: | 15V DC/AC | Rated Excitation: | 10V DC/AC |
| High Light: | 10t Digital Balance Load Cell,5t Digital Balance Load Cell,Flexible Electronic Balance Load Cell |
||
The display controller is faster in the same price range. At the same time, customers can choose to add TEDS, analog and communication functions based on the basic model during the selection process. The comparator of this controller is also flexible, and the comparison method is various, and the user can build the comparison mode by himself.
| Technical Parameter | |
| Rated Load | 0.5t,1t,2t,3t,5t,10t |
| Sensitivity | 2.0000±0.002mV/V |
| Total Error | ±0.02%F.S |
| Creep(30minutes) | ±0.02%F.S |
| Recommended Excitation Voltage | 5V~12V(AC or DC) |
| Maximum Excitation Voltage | 15V(AC or DC) |
| Zero Balance | ±1%F.S |
| Input Impedance | 380±10Ω |
| Output Impedance | 350±5Ω |
| Insulation Impedance | ≥5000MΩ |
| Safe Overload | 150%F.S |
| Ultimate Overload | 200%F.S |
| Operating Temperature Range | (-30~+70)℃ |
| Compensated Temperature Range | (-20~+60)℃ |
| Temperature Effect On Load | ±0.02%F.S/10℃ |
| Temperature Effect On Zero | ±0.02%F.S/10℃ |
| Construction | Alloy Steel |
| Protection Class | IP67 |
| Citation | GB/T7551-2008/OIML R60 |
| Mode of Connection | Input+E:Red Input-E:Black Output+S:Green Output-S:White |
