| Range: | 150, 200, 300, 600, 1200, 1500, 3000(g) | Input Impedance: | 410 ± 15 |
|---|---|---|---|

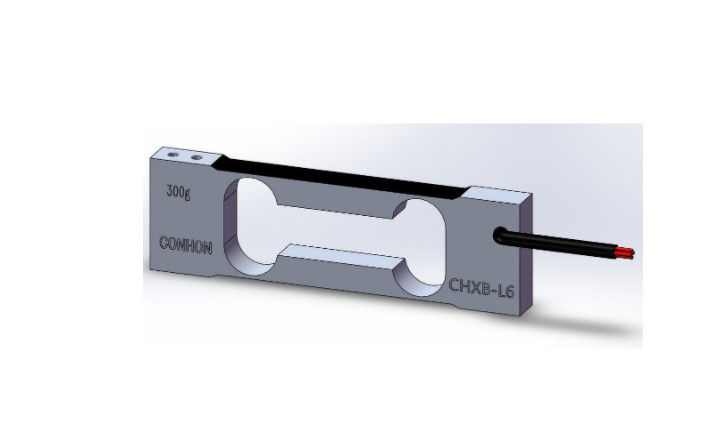

| Product Name: | 3000G Weighbridge Load Cell | Communication: | RS232/485 |
| Material: | Aluminum Alloy | Rated Output: | Accuracy Level |
| High Light: | Low Height Weighbridge Load Cell,Electronic Scale Weighbridge Load Cell,300G Weighbridge Load Cell |
||
New energy product assembly, medical testing, robotics, molds assemble and other industrial test, measurement and control systems.
High dynamic response frequency.
Widely used in medical instruments,electronic scale,storage scale,ect.
Plastic package ,pressure-bearing ,easy to install and flexible
Principle of the semiconductor
Small size ,beautiful appearance
High frequency dynamic response
Customizable ,IP 66 protection
Anti-bias load, low height, good strength, easy installation
150, 200, 300, 600, 1200, 1500, 3000(g)(Customizable range)
| PARAMETER参数 | UNIT单位 | VALUE值 | |||
| Rated capacity (Emax)量程 | g | 150(1),(2), 200(1), (2), 300(2), 600, 1200, 1500, 3000 | |||
| CONHON Grade等级 | R | S | U | V | |
| Sensitivity灵敏度 | mV/V | 0.90 | |||
| Sensitivity tolerance灵敏度误差 | ± mV/V | 0.10 | |||
| Zero balance零点平衡 | ± mV/V | 0.10 | |||
| Y=Emax/vmin | Typical | 4000 | 5000 | 6000 | 8000 |
| Z=Emax/(2*DR) | Typical | 3000 | 4000 | 5000 | 6000 |
| Creep (From stable to 2min)蠕变 | ± % | 0.0085 | 0.0050 | 0.0033 | 0.0028 |
| Temperature effect on output温度漂移 | ± %/ °C | 0.0014 | 0.0012 | ||
| Hysteresis磁滞 | % | 0.0080 | 0.0045 | 0.0032 | 0.0025 |
| Linearity deviation线性偏差 | % | 0.0120 | 0.0100 | 0.0060 | 0.0045 |
| Repeatability重复性 | % | 0.0090 | 0.0050 | 0.0040 | 0.0030 |
| Eccentric loading error偏心加载错误 | % /cm | 0.0042 | 0.0042 | 0.0036 | 0.0024 |
| Nominal temperature range额定温度范围 | °C | +10 to +40 | |||
| Service temperature range操作温度范围 | °C | -30 to +70 | |||
| Limit load极限载荷 | % of R.C. | 200 | |||
| Break load断裂载荷 | % of R.C. | 300 | |||
| Nominal Humidity Range湿度范围 | %RH | 20 to 65 | |||
| Nominal excitation激励电压 | V | 5 | |||
| Max. excitation最大激励电压 | V | 15 | |||
| Input impedance输入阻抗 | Ohm | 410 ± 15 | |||
| Output impedance输出阻抗 | Ohm | 350 ± 3 | |||
| Insulation resistance绝缘电阻 | MOhm | >2000 | |||
| Cable length电缆长度 | Meter | 0.35 | |||
| Cable type电缆类型 | 4 conductors, 28 AWG, Aluminum foil Shielded, Black PVC Jacket | ||||
| Color code颜色代码 | +Exc -Grn, +Sig-Red, -Exc-Blk, -Sig- Wht | ||||
| Construction材质 | Aluminum | ||||
| Compensation circuit type 电路类型 | Balanced Bridge | ||||
| Protection class to IEC529防护等级 | IP 66 | ||||
